TermVariable Class Reference

Variable. More...

#include <TermVariable.h>

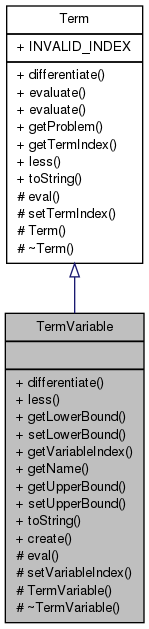

Inheritance diagram for TermVariable:

Collaboration diagram for TermVariable:

Public Member Functions
Term *	differentiate (TermVariable *variable) throw (ProblemMismatchException)
	Diffentiates this term by variable.
bool	less (const Term *term) const
	Compares this variable with a term.
const double	getLowerBound ()
	Gets lower bound.
void	setLowerBound (const double lowerBound)
	Sets lower bound.
const int	getVariableIndex ()
	Gets index of variable.
const std::string	getName ()
	Gets name of this variable.
const double	getUpperBound ()
	Gets upper bound.
void	setUpperBound (const double upperBound)
	Sets upper bound.
std::string	toString () const
	Convert term to string.
Public Member Functions inherited from Term
double	evaluate (const DoubleVector *variableValues)
	Evaluates term.
double	evaluate (const DoubleVector *variableValues, TermValueSet *termValues)
	Evaluates term.
virtual Problem *	getProblem () const
	Returns the problem to which the term belongs.
const int	getTermIndex ()
	Get term index.

Static Public Member Functions
static TermVariable *	create (Problem *problem, const std::string &name)
	Creates variable.

Protected Member Functions
double	eval (const DoubleVector *variableValues, TermValueSet *termValues)
	Evaluates term.
void	setVariableIndex (const int variableIndex)
	Sets index of variable.
	TermVariable (Problem *problem, const std::string &name)
	Creates variable.
virtual	~TermVariable ()
	Destroys variable.
Protected Member Functions inherited from Term
void	setTermIndex (const int termIndex)
	Set term index.
	Term (Problem *problem)
	Creates a term.
virtual	~Term ()
	Destroys a term.

Friends
class	Problem

Additional Inherited Members
Static Public Attributes inherited from Term
static const int	INVALID_INDEX = -1

Detailed Description

Variable.

Definition at line 32 of file TermVariable.h.

Constructor & Destructor Documentation

TermVariable::TermVariable ( Problem *  problem, const std::string &  name  )

protected

Creates variable.

Parameters

problem	problem
name	name of variable

Definition at line 29 of file TermVariable.cc.

Here is the caller graph for this function:

Member Function Documentation

TermVariable * TermVariable::create ( Problem *  problem, const std::string &  name  )

static

Creates variable.

Parameters

problem	problem
name	name of variable

Returns

Definition at line 67 of file TermVariable.cc.

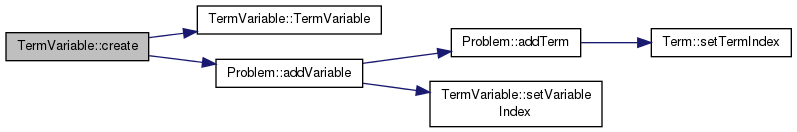

Here is the call graph for this function:

Term * TermVariable::differentiate ( TermVariable *  variable ) throw (ProblemMismatchException)

virtual

Diffentiates this term by variable.

Parameters

variable

variable

Returns

derivative

Reimplemented from Term.

Definition at line 78 of file TermVariable.cc.

Here is the call graph for this function:

double TermVariable::eval ( const DoubleVector *  variableValues, TermValueSet *  termValues  )

protectedvirtual

Evaluates term.

Parameters

variableValues	values of the variables
termValues	values of the terms

Returns

Reimplemented from Term.

Definition at line 91 of file TermVariable.cc.

const double TermVariable::getLowerBound

(

)

Gets lower bound.

Returns

lower bound

Definition at line 117 of file TermVariable.cc.

const std::string TermVariable::getName

(

)

Gets name of this variable.

Returns

name

Definition at line 133 of file TermVariable.cc.

const double TermVariable::getUpperBound

(

)

Gets upper bound.

Returns

upper bound

Definition at line 141 of file TermVariable.cc.

const int TermVariable::getVariableIndex

(

)

Gets index of variable.

Returns

Definition at line 101 of file TermVariable.cc.

bool TermVariable::less ( const Term *  term ) const

virtual

Compares this variable with a term.

Parameters

term

term

Returns

this variable is before term.

Reimplemented from Term.

Definition at line 47 of file TermVariable.cc.

Here is the call graph for this function:

void TermVariable::setLowerBound

(

const double

lowerBound

)

Sets lower bound.

Parameters

lowerBound

lower bound

Definition at line 125 of file TermVariable.cc.

void TermVariable::setUpperBound

(

const double

upperBound

)

Sets upper bound.

Parameters

upperBound

upper bound

Definition at line 149 of file TermVariable.cc.

void TermVariable::setVariableIndex ( const int  variableIndex )

protected

Sets index of variable.

Parameters

index

Definition at line 109 of file TermVariable.cc.

Here is the caller graph for this function:

std::string TermVariable::toString ( ) const

virtual

Convert term to string.

Returns

string

Reimplemented from Term.

Definition at line 153 of file TermVariable.cc.

---

The documentation for this class was generated from the following files:

• src/problem/TermVariable.h
• src/problem/TermVariable.cc
